The association between anthropometric measurements (rider height/horse height) and frame size is a statistical average based on the over 17,000 tests carried out and present in the idmatch database considering the correlation between frame size - stem length. All this - given that each Cipollini® frame has a specific geometry aimed at the different use of the specific type of cyclist - has the sole purpose of providing an initial indication of the correct size to choose for the specific model. In order to fully enjoy the experience with a Cipollini® frame, we advise you to choose an "idmatch dealer" or a professional biomechanic for the correct positioning on the bike.
go back
How to measure height
Stand upright
Stand barefoot against a wall with your heels, buttocks, shoulders and head touching the wall. Straighten your chin and look straight ahead. Ask a person to place a book on your head, pushing it parallel until it touches the wall so that it creates a right angle with the wall.
At this point the person helping you will draw a line with a pencil at the level that reaches the book on the wall. Measure the distance from the floor to the line: the number obtained corresponds to your height.
go back
How to measure crotch
For the measurement you need to be barefoot and wear cycling shorts. Stand up straight against a wall and having someone help you, place a metric spirit level (bubble) between your thighs, at crotch height.
Measure the distance from the outer edge of the spirit level to the ground. This measurement corresponds to your horse
Technical features
- rear lining height clip attachment20 mm
- maximum tyre widthMax 47 mm (Measured Width) on 700cc - Recommended 42 mm (Measured Width) on 700cc
- central movementIsis
- fork weight570 g
- r rival weight16,1 Kg
- r ultegra weight15,7 Kg
- chassis weight1.440 g
- seat postOffset 0mm 140 g
- headsetSpecific headset (IS52/IS52)
- break systemDisc brake (Flat Mount, Thru Axle 12 x 142 mm - 12 x 100 mm)
- handlebar stemFSA ST ROAD NS SMR alloy -6° 1-1/8 + ''MC'' stem carbon clamp(XS: 90 mm, S: 100 mm, M: 110 mm, L: 120 mm, XL: 130 mm) + FSA HB ROAD SL-K Compact ACR carbon(XS: 400 mm, S/M/L: 420 mm, XL: 440 mm c-c)
- batteryPOLINI 500 Wh EVO
- exchangeShimano Ultegra Di2 12s R8150
- battery chargerShimano CHARGING CABLE, EW-EC300
- chainShimano M8100 12s
- gripper controlsShimano Ultegra R8170
- controllerPolini Switch Controller Road
- coversPirelli 35-622 Cinturato Velo TLR
- derailleur-
- displayPolini TFT EP-3+
- drive unitPOLINI E-P3+ EVO
- forkMCipollini Fybra
- gearsCR ROAD 1X 5h 110x48t WA021
- gpsEF Technlogy GPS Tracker
- front lightSupernova MINI 2 PRO
- back lightSupernova E3 Tail Light 2
- handlebar tapeSupacaz Super Sticky Kush Classic - Black, Pair
- sprocket setClassified cassette (11-30) 12s
- cranksFSA CK E-BIKE CK-746-2/IS armset(XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
- seatpostMCipollini Fybra
- rotorsShimano RTMT800 160 mm
- rear wheelClassified Powershift wheels CF G42
- rear wheelClassified Powershift wheels CF G30
- saddleSelle Italia SLR Boost Superflow Carbon Kit
- speed sensorPolini Speed Sensor
- chassisMCipollini Fybra
Discover every detail of FYBRA EVO.
An unmistakable design, an electric power to be tested: FYBRA R by MCipollini is this and so much more.
Description
FYBRA R is the new MCipollini Road racing ebike with high performance power, thanks to the Polini EP3 EVO system and Polini 500 Wh battery. FYBRA R also stands apart for its metric development range, which is double in assembly with the Powershift Classified, and many other optionals:
- Wide wheel passage
- Built-in GPS locator
- 550 lumen headlight

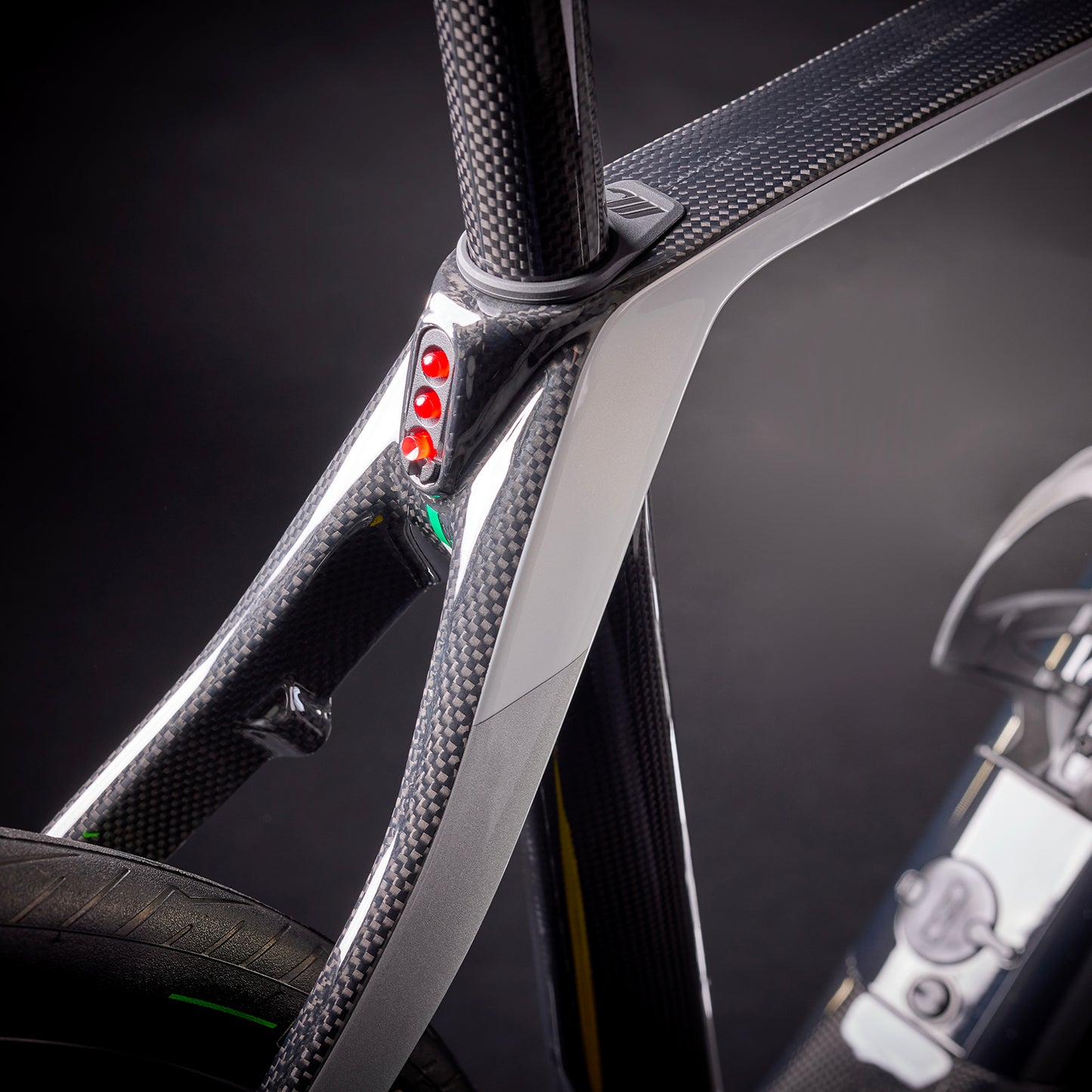

- Built-in rear light
- Pollini battery compatible
- Total integration
- Provision for racks, fenders and bikepacking
User manual
To find out all about the use and maintenance of your MCipollini FYBRA R please refer to the manual available here.
Download
Warranty
Discover our warranty for your new MCipollini
Download
TCM, the Frame of a Genius
MCipollini’s TCM monocoque frame eliminates many of the weaknesses of the other monocoque frames on the market, which are often built by fastening the rear triangle to the front of the frame using adhesive.. This treatment makes the frame structure more prone to deterioration in the long term, resulting in a decrease in performance.
TCM's monocoque structure however tends to absorb the pressures of the frame more evenly and with less impact, promoting durability over the years.
Stronger, tougher, lighter: this is why the MCipollini frame is The Frame of a Genius.
How we build the TCM frame
The TCM frame created from a single mould, thanks to a long and complex machining process. The carbon elements are positioned and layered inside an aluminium mould to achieve the maximum result. This means that the lamination process produces a single piece that does not undergo any further structural processing or subsequent firing that could alter the frame structure.
Perfect fibres
The choice of the fibres used in the lamination, their certification and the autoclave construction technology bestow unique mechanical characteristics to the MCipollini frames. The materials used in the manufacturing process are pre-impregnated with epoxy matrix resins and undergo sequential checks to ensure that the resin content is uniform on all the various parts.
