FYBRA R

Size	Height Crotch max cm	Height Crotch min cm	Height max cm	Height min cm
XS	77	0	163	0
M	83	78	180	171
L	87	82	187	178
XL	130	84	220	183

Calculate your size

Help

Calculate

Please check height and crotch fields, only numeric values are valid

Your measurement. Your measurements fall within both sizes indicated.
We recommend that you contact a retailer for further advice.

The association between anthropometric measurements (rider height/horse height) and frame size is a statistical average based on the over 17,000 tests carried out and present in the idmatch database considering the correlation between frame size - stem length. All this - given that each Cipollini® frame has a specific geometry aimed at the different use of the specific type of cyclist - has the sole purpose of providing an initial indication of the correct size to choose for the specific model. In order to fully enjoy the experience with a Cipollini® frame, we advise you to choose an "idmatch dealer" or a professional biomechanic for the correct positioning on the bike.

go back

How to measure height

Stand upright Stand barefoot against a wall with your heels, buttocks, shoulders and head touching the wall. Straighten your chin and look straight ahead. Ask a person to place a book on your head, pushing it parallel until it touches the wall so that it creates a right angle with the wall. At this point the person helping you will draw a line with a pencil at the level that reaches the book on the wall. Measure the distance from the floor to the line: the number obtained corresponds to your height.

go back

How to measure crotch

For the measurement you need to be barefoot and wear cycling shorts. Stand up straight against a wall and having someone help you, place a metric spirit level (bubble) between your thighs, at crotch height. Measure the distance from the outer edge of the spirit level to the ground. This measurement corresponds to your horse

Technical features

rear lining height clip attachment

20 mm
maximum tyre width

Max 47 mm (Measured Width) on 700cc - Recommended 42 mm (Measured Width) on 700cc
central movement

Isis
fork weight

570 g
r rival weight

16,1 Kg
r ultegra weight

15,7 Kg
chassis weight

1.440 g
seat post

Offset 0mm 140 g
headset

Specific headset (IS52/IS52)
break system

Disc brake (Flat Mount, Thru Axle 12 x 142 mm - 12 x 100 mm)
handlebar stem

FSA ST ROAD NS SMR alloy -6° 1-1/8 + ''MC'' stem carbon clamp(XS: 90 mm, S: 100 mm, M: 110 mm, L: 120 mm, XL: 130 mm) + Vision Trimax Aero ACR(XS: 400 mm, S/M/L: 420 mm, XL: 440 mm c-c)
battery

POLINI 500 Wh EVO
exchange

SRAM RIVAL E-TAP AXS D1
battery charger

SRAM E-TAP AXS Powerpack
chain

SRAM RIVAL D1 12V
gripper controls

SRAM RIVAL ETAP AXS HRD FM D1
controller

Polini Switch Controller Road
covers

Vittoria Terreno Zero 40-622 Gravel anth-blk-blk TLR
derailleur

-
display

Polini TFT EP-3+
drive unit

POLINI E-P3+ EVO
fork

MCipollini Fybra
gears

CR ROAD SUPER 1x 5h 110x42T WA669
gps

EF Technlogy GPS Tracker
front light

Supernova MINI 2 PRO
back light

Supernova E3 Tail Light 2
handlebar tape

Supacaz Super Sticky Kush Classic - Black, Pair
sprocket set

SRAM XG-1250 D1 X-Glide 10-36, 12 s
cranks

FSA CK E-BIKE CK-746-2/IS(XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
seatpost

MCipollini Fybra
rotors

SRAM Paceline Road Centerlock 160 mm
rear wheel

Stan's Crest MK4 - Damil DM-25A hub
rear wheel

Stan's Crest MK4 - Damil DM-25A hub
saddle

Selle Italia Model X Superflow
speed sensor

Polini Speed Sensor
chassis

MCipollini Fybra

view all

Discover every detail of FYBRA EVO.

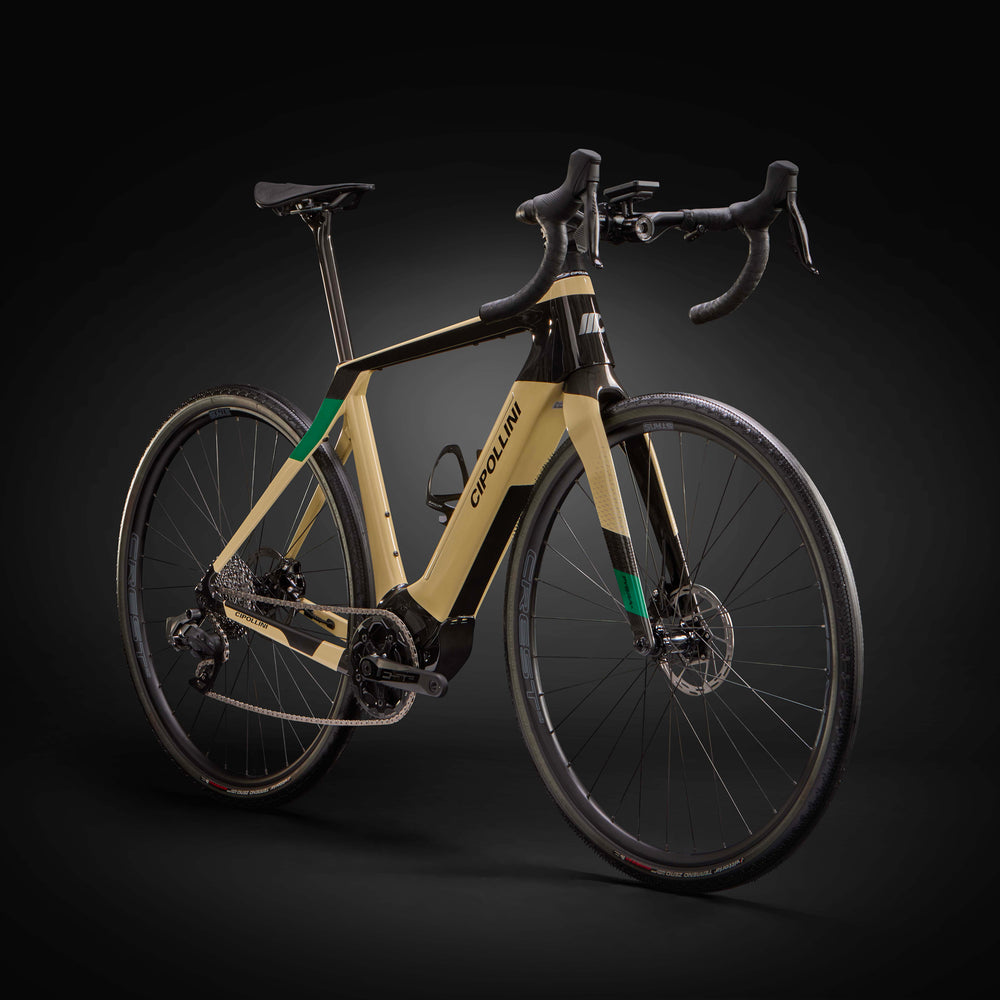

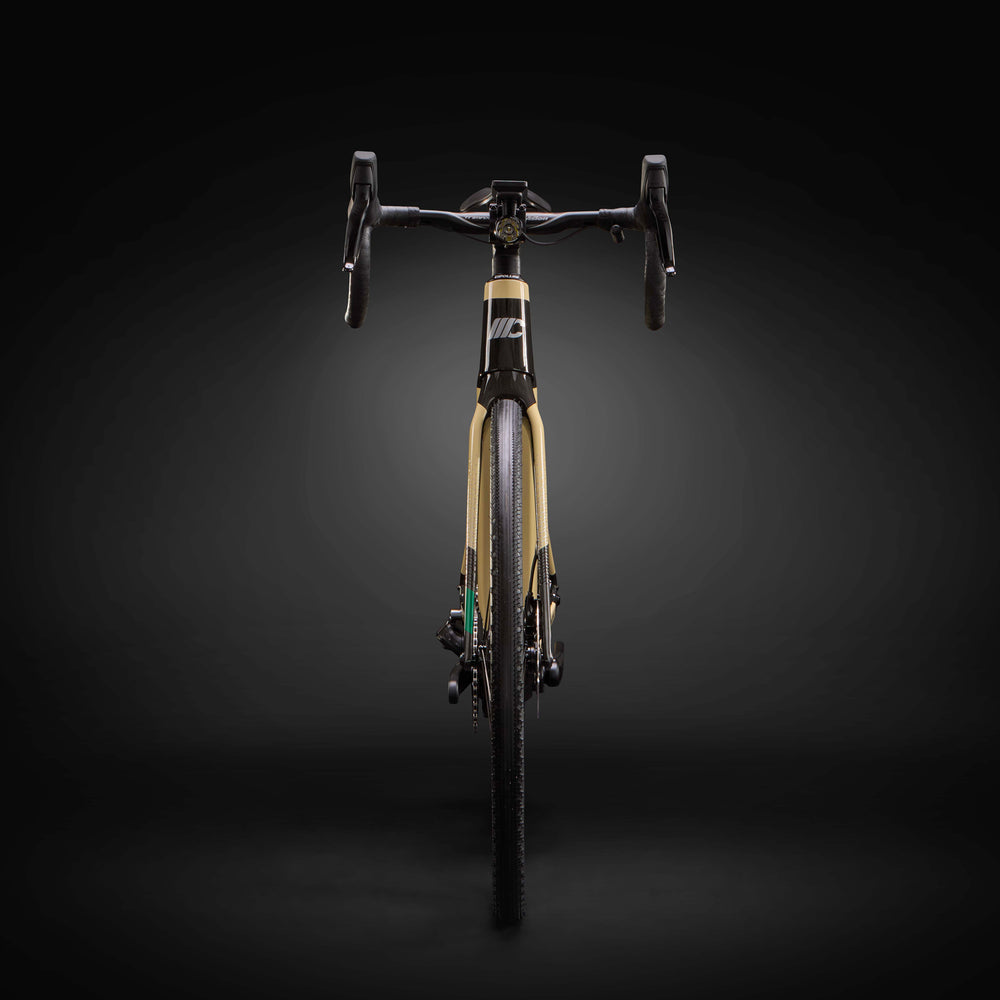

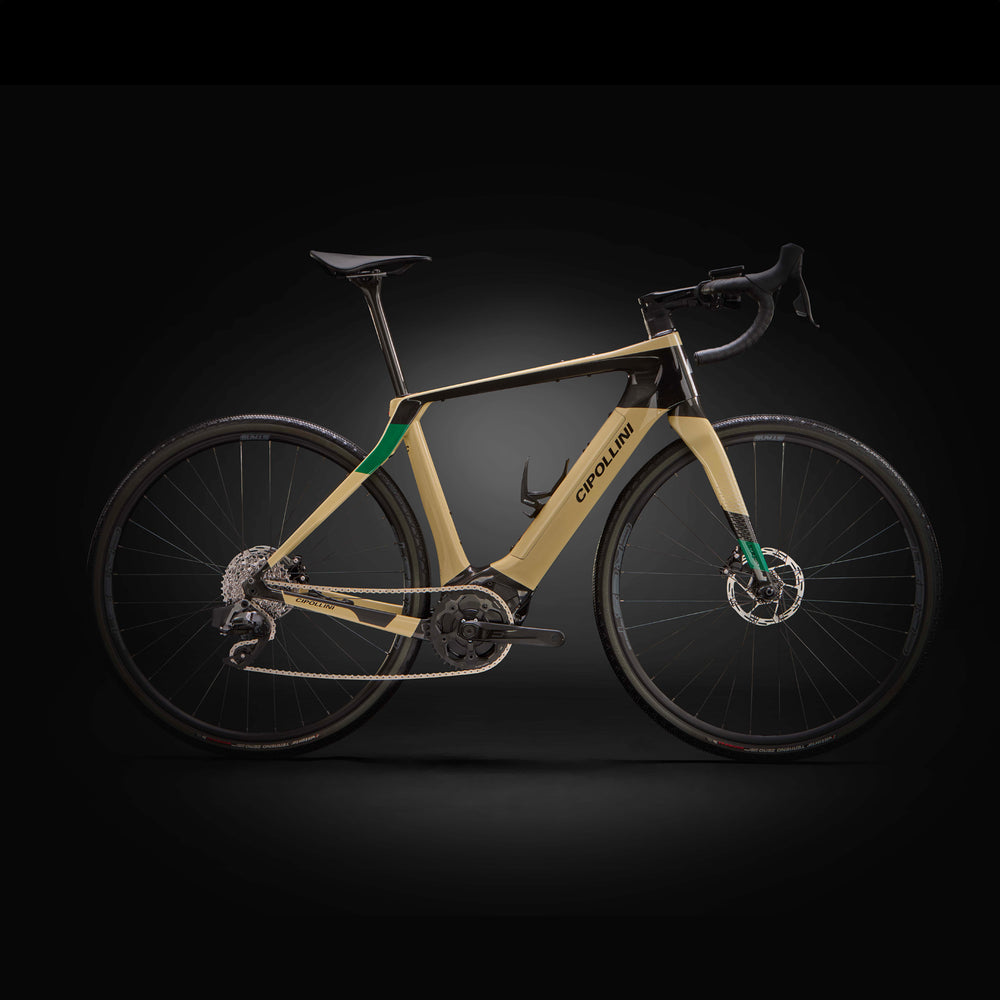

An unmistakable design, an electric power to be tested: FYBRA R by MCipollini is this and so much more.

Description

FYBRA R is the new MCipollini Road racing ebike with high performance power, thanks to the Polini EP3 EVO system and Polini 500 Wh battery. FYBRA R also stands apart for its metric development range, which is double in assembly with the Powershift Classified, and many other optionals:

Wide wheel passage
Built-in GPS locator
550 lumen headlight

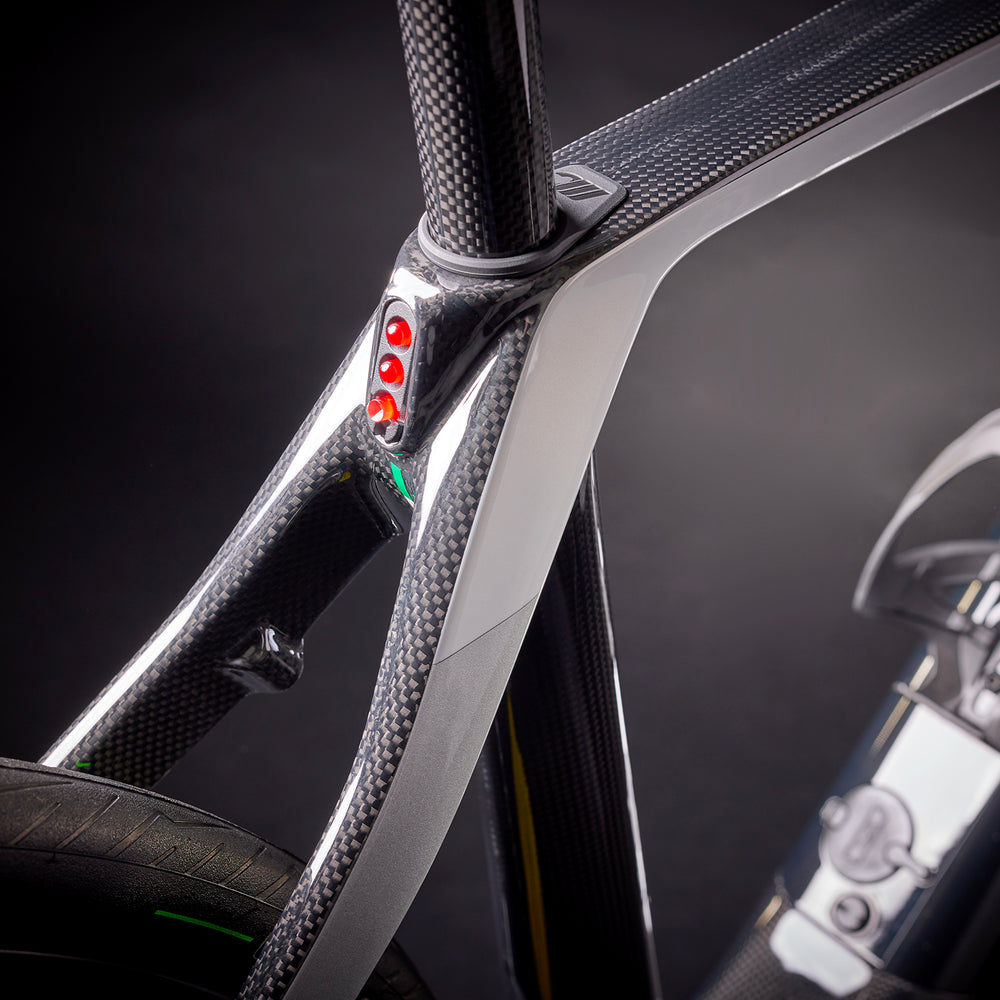

Built-in rear light
Pollini battery compatible
Total integration
Provision for racks, fenders and bikepacking

.

User manual

To find out all about the use and maintenance of your MCipollini FYBRA R please refer to the manual available here. Download

Warranty

Discover our warranty for your new MCipollini Download

TCM, the Frame of a Genius

MCipollini’s TCM monocoque frame eliminates many of the weaknesses of the other monocoque frames on the market, which are often built by fastening the rear triangle to the front of the frame using adhesive.. This treatment makes the frame structure more prone to deterioration in the long term, resulting in a decrease in performance.

TCM's monocoque structure however tends to absorb the pressures of the frame more evenly and with less impact, promoting durability over the years.

Stronger, tougher, lighter: this is why the MCipollini frame is The Frame of a Genius.

How we build the TCM frame

The TCM frame created from a single mould, thanks to a long and complex machining process. The carbon elements are positioned and layered inside an aluminium mould to achieve the maximum result. This means that the lamination process produces a single piece that does not undergo any further structural processing or subsequent firing that could alter the frame structure.

Perfect fibres

The choice of the fibres used in the lamination, their certification and the autoclave construction technology bestow unique mechanical characteristics to the MCipollini frames. The materials used in the manufacturing process are pre-impregnated with epoxy matrix resins and undergo sequential checks to ensure that the resin content is uniform on all the various parts.
